9 Time and timekeeping

This chapter covers

• Understanding how a computer keeps time
• How operating systems represent timestamps
• Synchronizing atomic clocks with the Network Time Protocol (NTP)

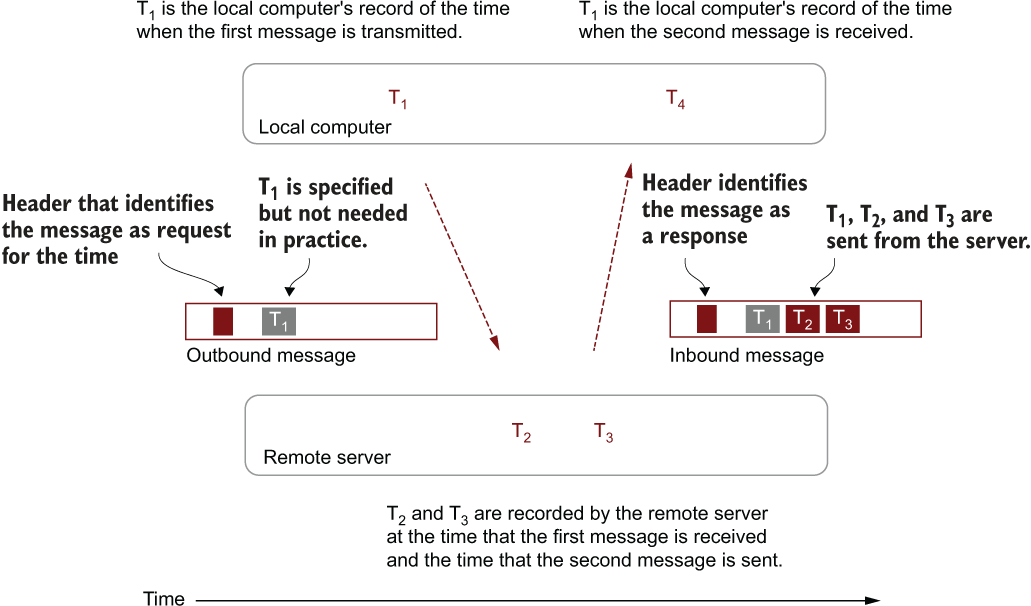

In this chapter, you’ll produce an NTP (Network Time Protocol) client that requests the current time from the world’s network of public time servers. It’s a fully functioning client that can be included in your own computer’s boot process to keep it in sync with the world.

Understanding how time works within computers supports your efforts to build resilient applications. The system clock jumps both backwards and forwards in time. Knowing why this happens allows you to anticipate and prepare for that eventuality.

Your computer also contains multiple physical and virtual clocks. It takes some knowledge to understand the limitations of each and when these are appropriate. Understanding the limitations of each should foster a healthy skepticism about micro benchmarks and other time-sensitive code.

Some of the hardest software engineering involves distributed systems that need to agree on what the time is. If you have the resources of Google, then you’re able to maintain a network atomic clock that provides a worldwide time synchronization of 7 ms. The closest open source alternative is CockroachDB (https://www.cockroachlabs.com/). It relies on the NTP, which can have a (worldwide) latency of approximately dozens of milliseconds. But that doesn’t make it useless. When deployed within a local network, NTP allows computers to agree on the time to within a few milliseconds or less.

On the Rust side of the equation, this chapter invests lots of time interacting with the OS internals. You’ll become more confident with unsafe blocks and with using raw pointers. Readers will become familiar with chrono, the de facto standard crate for high-level time and clock operations.

9.1 Background

It’s easy to think that a day has 86,400 seconds (60 s × 60 min × 24 h = 86,400 s). But the earth’s rotation isn’t quite that perfect. The length of each day fluctuates due to tidal friction with the moon and other effects such as torque at the boundary of the earth’s core and its mantle.

Software does not tolerate these imperfections. Most systems assume that most seconds have an equal duration. The mismatch presents several problems.

In 2012, a large number of services—including high profile sites such as Reddit and Mozilla’s Hadoop infrastructure—stopped functioning after a leap second was added to their clocks. And, at times, clocks can go back in time (this chapter does not, however, cover time travel). Few software systems are prepared for the same timestamp to appear twice. That makes it difficult to debug the logs. There are two options for resolving this impasse:

• Keep the length of each second fixed. This is good for computers but irritating for humans. Over time, “midday” drifts towards sunset or sunrise.

• Adjust the length of each year to keep the sun’s position relative to noon in the same place from year to year. This is good for humans but sometimes highly irritating for computers.

In practice, we can chose both options as we do in this chapter. The world’s atomic clocks use their own time zone with fixed-length seconds, called TAI. Everything else uses time zones that are periodically adjusted; these are called UTC.

TAI is used by the world’s atomic clocks and maintains a fixed-length year. UTC adds leap seconds to TAI about once every 18 months. In 1972, TAI and UTC were 10 seconds apart. By 2016, they had drifted to 36 seconds apart.

In addition to the issues with earth’s fickle rotational speed, the physics of your own computer make it challenging to keep accurate time. There are also (at least) two clocks running on your system. One is a battery-powered device, called the real-time clock. The other one is known as system time. System time increments itself based on hardware interrupts provided by the computer’s motherboard. Somewhere in your system, a quartz crystal is oscillating rapidly.

9.2 Sources of time

Computers can’t look at the clock on the wall to determine what time it is. They need to figure it out by themselves. To explain how this happens, let’s consider how digital clocks operate generally, then how computer systems operate given some difficult constraints, such as operating without power.

Digital clocks consist of two main parts. The first part is some component that ticks at regular intervals. The second part is a pair of counters. One counter increments as ticks occur. The other increments as seconds occur. Determining “now” within digital clocks means comparing the number of seconds against some predetermined starting point. The starting point is known as the epoch.

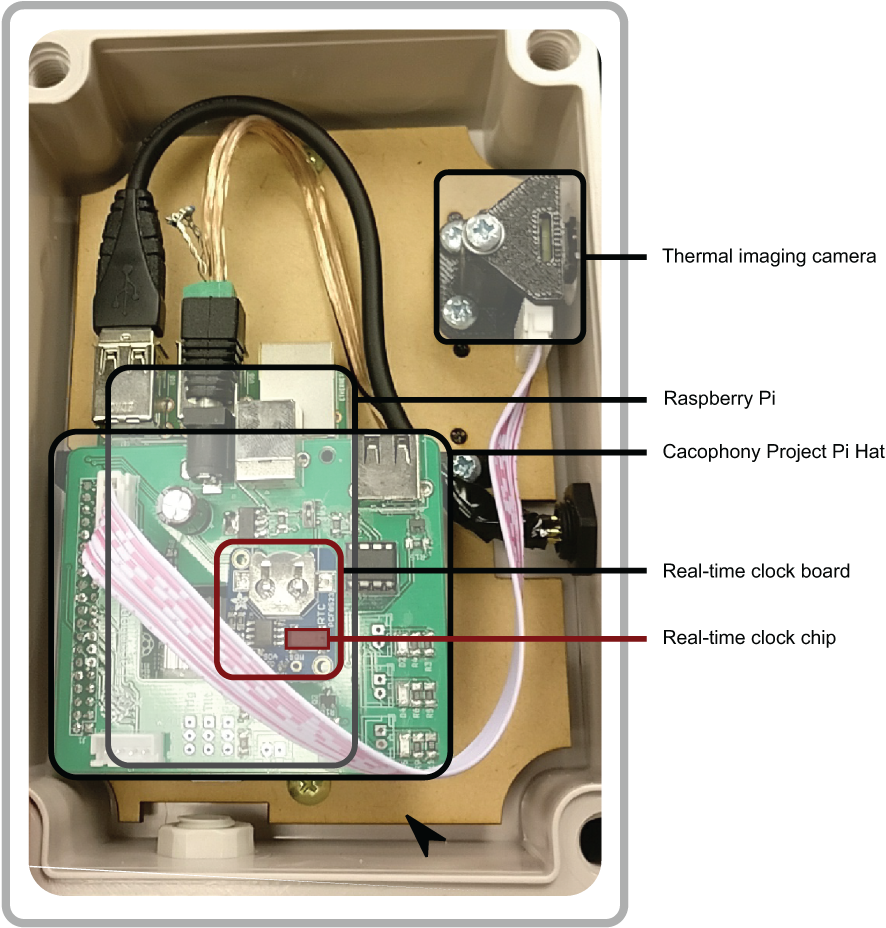

Embedded hardware aside, when your computer is turned off, a small battery-powered clock continues to run. Its electric charge causes a quartz crystal to oscillate rapidly. The clock measures those oscillations and updates its internal counters. In a running computer, the CPU clock frequency becomes the source of regular ticks. A CPU core operates at a fixed frequency.¹ Inside the hardware, a counter can be accessed via CPU instructions and/or by accessing predefined CPU registers.²

Relying on a CPU’s clock can actually cause problems in niche scientific and other high-accuracy domains, such as profiling an application’s behavior. When computers use multiple CPUs, which is especially common in high performance computing, each CPU has a slightly different clock rate. Moreover, CPUs perform out-of-order execution. This means that it’s impossible for someone creating a benchmarking/profiling software suite to know how long a function takes between two timestamps. The CPU instructions requesting the current timestamp may have shifted.

9.3 Definitions

Unfortunately, this chapter needs to introduce some jargon:

• Absolute time—Describes the time that you would tell someone if they were to ask for the time. Also referred to as wall clock time and calendar time.

• Real-time clock—A physical clock that’s embedded in the computer’s motherboard, which keeps time when the power is off. It’s also known as the CMOS clock.

• System clock—The operating system’s view of the time. Upon boot, the OS takes over timekeeping duties from the real-time clock.

  All applications derive their idea of time from the system time. The system clock experiences jumps, as it can be manually set to a different position. This jumpiness can confuse some applications.

• Monotonically increasing—A clock that never provides the same time twice. This is a useful property for a computer application because, among other advantages, log messages will never have a repeated timestamp. Unfortunately, preventing time adjustments means being permanently bound to the local clock’s skew. Note that the system clock is not monotonically increasing.

• Steady clock—This clock provides two guarantees: its seconds are all equal length and it is monotonically increasing. Values from steady clocks are unlikely to align with the system clock’s time or absolute time. These typically start at 0 when computers boot up, then count upwards as an internal counter progresses. Although potentially useless for knowing the absolute time, these are handy for calculating the duration between two points in time.

• High accuracy—A clock is highly accurate if the length of its seconds are regular. The difference between two clocks is known as skew. Highly accurate clocks have little skew against the atomic clocks that are humanity’s best engineering effort at keeping accurate time.

• High resolution—Provides accuracy down to 10 nanoseconds or below. High resolution clocks are typically implemented within CPU chips because there are few devices that can maintain time at such high frequency. CPUs are able to do this. Their units of work are measured in cycles, and cycles have the same duration. A 1 GHz CPU core takes 1 nanosecond to compute one cycle.

• Fast clock—A clock that takes little time to read the time. Fast clocks sacrifice accuracy and precision for speed, however.

9.4 Encoding time

There are many ways to represent time within a computer. The typical approach is to use a pair of 32-bit integers. The first counts the number of seconds that have elapsed. The second represents a fraction of a second. The precision of the fractional part depends on the device in question.

The starting point is arbitrary. The most common epoch in UNIX-based systems is 1 Jan 1970 UTC. Alternatives include 1 Jan 1900 (which happens to be used by NTP), 1 Jan 2000 for more recent applications, and 1 Jan 1601 (which is the beginning of the Gregorian calendar). Using fixed-width integers presents two key advantages and two main challenges:

• Advantages include

  • Simplicity—It’s easy to understand the format.

  • Efficiency—Integer arithmetic is the CPU’s favorite activity.

• Disadvantages include

  • Fixed-range—All fixed-integer types are finite, implying that time eventually wraps around to 0 again.

  • Imprecise—Integers are discrete, while time is continuous. Different systems make different trade-offs relating to subsecond accuracy, leading to rounding errors.

It’s also important to note that the general approach is inconsistently implemented. Here are some things seen in the wild to represent the seconds component:

• UNIX timestamps, a 32-bit integer, represents milliseconds since epoch (e.g., 1 Jan 1970).

• MS Windows FILETIME structures (since Windows 2000), a 64-bit unsigned integer, represents 100 nanosecond increments since 1 Jan 1601 (UTC).

• Rust community’s chronos crate, a 32-bit signed integer, implements NaiveTime alongside an enum to represent time zones where appropriate.³

• time_t (meaning time type but also called simple time or calendar time ) within the C standard library (libc) varies:

  • Dinkumware’s libc provides an unsigned long int (e.g., a 32-bit unsigned integer).

  • GNU’s libc includes a long int (e.g., a 32-bit signed integer).

  • AVR’s libc uses a 32-bit unsigned integer, and its epoch begins at midnight, 1 January 2000 (UTC).

Fractional parts tend to use the same type as their whole-second counterparts, but this isn’t guaranteed. Now, let’s take a peek a time zones.

9.4.1 Representing time zones

Time zones are political divisions, rather than technical ones. A soft consensus appears to have been formed around storing another integer that represents the number of seconds offset from UTC.

9.5 clock v0.1.0: Teaching an application how to tell the time

To begin coding our NTP client, let’s start by learning how to read time. Figure 9.1 provides a quick overview of how an application does that.

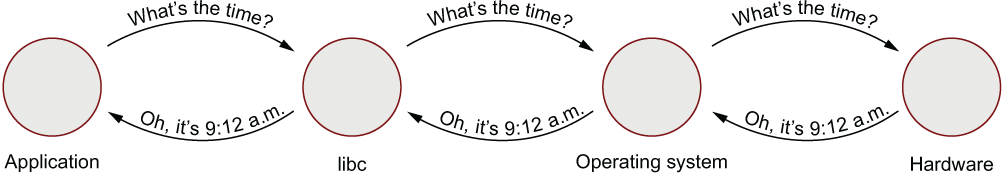

Figure 9.1 An application gets time information from the OS, usually functionally provided by the system’s libc implementation.

Listing 9.2, which reads the system time in the local time zone, might almost feel too small to be a full-fledged example. But running the code results in the current timestamp formatted according to the ISO 8601 standard. The following listing provides its configuration. You’ll find the source for this listing in ch9/ch9-clock0/Cargo.toml.

Listing 9.1 Crate configuration for listing 9.2

[package]
name = "clock"
version = "0.1.0"
authors = ["Tim McNamara <author@rustinaction.com>"]
edition = "2018"

[dependencies]
chrono = "0.4"

The following listing reads and prints the system time. You’ll find the source code for the listing in ch9/ch9-clock0/src/main.rs.

Listing 9.2 Reading the system time and printing it on the screen

1 use chrono::Local;
2
3 fn main() {
4     let now = Local::now();     ①
5     println!("{}", now);
6 }

① Asks for the time in the system’s local time zone

In listing 9.2, there is a lot of complexity hidden by these eight lines of code. Much of it will be peeled away during the course of the chapter. For now, it’s enough to know that chrono::Local provides the magic. It returns a typed value, containing a time zone.

Note Interacting with timestamps that don’t include time zones or performing other forms of illegal time arithmetic results in the program refusing to compile.

9.6 clock v0.1.1: Formatting timestamps to comply with ISO 8601 and email standards

The application that we’ll create is called clock, which reports the current time. You’ll find the full application in listing 9.7. Throughout the chapter, the application will be incrementally enhanced to support setting the time manually and via NTP. For the moment, however, the following code shows the result of compiling and running the code from listing 9.8 and sending it the --use-standard timestamp flag.

$ cd ch9/ch9-clock1

$ cargo run -- --use-standard rfc2822
warning: associated function is never used: `set`
  --> src/main.rs:12:8
   |
12 |     fn set() -> ! {
   |        ^^^
   |
   = note: `#[warn(dead_code)]` on by default
warning: 1 warning emitted
    Finished dev [unoptimized + debuginfo] target(s) in 0.01s
     Running `target/debug/clock --use-standard rfc2822`
Sat, 20 Feb 2021 15:36:12 +1300

9.6.1 Refactoring the clock v0.1.0 code to support a wider architecture

It makes sense to spend a short period of time creating a scaffold for the larger application that clock will become. Within the application, we’ll first make a small cosmetic change. Rather than using functions to read the time and adjust it, we’ll use static methods of a Clock struct. The following listing, an excerpt from listing 9.7, shows the change from listing 9.2.

Listing 9.3 Reading the time from the local system clock

 2 use chrono::{DateTime};
 3 use chrono::{Local};
 4
 5 struct Clock;
 6
 7 impl Clock {
 8     fn get() -> DateTime<Local> {     ①
 9         Local::now()
10     }
11
12     fn set() -> ! {
13         unimplemented!()
14     }
15 }

① DateTime<Local> is a DateTime with the Local time zone information.

What on earth is the return type of set()? The exclamation mark (!) indicates to the compiler that the function never returns (a return value is impossible). It’s referred to as the Never type. If the unimplemented!() macro (or its shorter cousin todo!()) is reached at runtime, then the program panics.

Clock is purely acting as a namespace at this stage. Adding a struct now provides some extensibility later on. As the application grows, it might become useful for Clock to contain some state between calls or implement some trait to support new functionality.

Note A struct with no fields is known as a zero-sized type or ZST. It does not occupy any memory in the resulting application and is purely a compile-time construct.

9.6.2 Formatting the time

This section looks at formatting the time as a UNIX timestamp or a formatted string according to ISO 8601, RFC 2822, and RFC 3339 conventions. The following listing, an excerpt from listing 9.7, demonstrates how to produce timestamps using the functionality provided by chrono. The timestamps are then sent to stdout.

Listing 9.4 Showing the methods used to format timestamps

48     let now = Clock::get();
49     match std {
50         "timestamp" => println!("{}", now.timestamp()),
51         "rfc2822"   => println!("{}", now.to_rfc2822()),
52         "rfc3339"   => println!("{}", now.to_rfc3339()),
53         _ => unreachable!(),
54     }

Our clock application (thanks to chrono) supports three time formats—timestamp, rfc2822, and rfc3339:

• timestamp—Formats the number of seconds since the epoch, also known as a UNIX timestamp.

• rfc2822—Corresponds to RPC 2822 (https://tools.ietf.org/html/rfc2822), which is how time is formatted within email message headers.

• rfc3339—Corresponds to RFC 3339 (https://tools.ietf.org/html/rfc3339). RFC 3339 formats time in a way that is more commonly associated with the ISO 8601 standard. However, ISO 8601 is a slightly stricter standard. Every RFC 3339-compliant timestamp is an ISO 8601-compliant timestamp, but the inverse is not true.

9.6.3 Providing a full command-line interface

Command-line arguments are part of the environment provided to an application from its OS when it’s established. These are raw strings. Rust provides some support for accessing the raw Vec<String> via std::env::args, but it can be tedious to develop lots of parsing logic for moderately-sized applications.

Our code wants to be able to validate certain input, such that the desired output format is one that the clock app actually supports. But validating input tends to be irritatingly complex. To avoid this frustration, clock makes use of the clap crate.

There are two main types that are useful for getting started: clap::App and clap::Arg. Each clap::Arg represents a command-line argument and the options that it can represent. clap::App collects these into a single application. To support the public API in table 9.1, the code in listing 9.5 uses three Arg structs that are wrapped together within a single App.

Table 9.1 Usage examples for executing the clock application from the command line. Each command needs to be supported by our parser.

Listing 9.5 is an excerpt from listing 9.7. It demonstrates how to implement the API presented in table 9.1 using clap.

Listing 9.5 Using clap to parse command-line arguments

18   let app = App::new("clock")
19     .version("0.1")
20     .about("Gets and (aspirationally) sets the time.")
21     .arg(
22       Arg::with_name("action")
23         .takes_value(true)
24         .possible_values(&["get", "set"])
25         .default_value("get"),
26     )
27     .arg(
28       Arg::with_name("std")
29         .short("s")
30         .long("standard")
31         .takes_value(true)
32         .possible_values(&[
33           "rfc2822",
34           "rfc3339",
35           "timestamp",
36         ])
37         .default_value("rfc3339"),
38     )
39     .arg(Arg::with_name("datetime").help(
40       "When <action> is 'set', apply <datetime>. \      ①
41        Otherwise, ignore.",
42     ));
43
44   let args = app.get_matches();

① The backslash asks Rust to escape the newline and the following indentation.

clap automatically generates some usage documentation for our clock application on your behalf. Using the --help option triggers its output.

9.6.4 clock v0.1.1: Full project

The following terminal session demonstrates the process of downloading and compiling the clock v0.1.1 project from the public Git repository. It also includes a fragment for accessing the --help option that is mentioned in the previous section:

$ git clone https:/ /github.com/rust-in-action/code rust-in-action

$ cd rust-in-action/ch9/ch9-clock1

$ cargo build
...
   Compiling clock v0.1.1 (rust-in-action/ch9/ch9-clock1)
warning: associated function is never used: `set`    ①
  --> src/main.rs:12:6
   |
12 |   fn set() -> ! {
   |      ^^^
   |
   = note: `#[warn(dead_code)]` on by default

warning: 1 warning emitted

$ cargo run -- --help                                ②
...
clock 0.1
Gets and sets (aspirationally) the time.

USAGE:
    clock.exe [OPTIONS] [ARGS]

FLAGS:
    -h, --help       Prints help information
    -V, --version    Prints version information

OPTIONS:
    -s, --use-standard <std>     [default: rfc3339]
                                 [possible values: rfc2822,
                                 rfc3339, timestamp]

ARGS:
    <action>      [default: get]  [possible values: get, set]
    <datetime>    When <action> is 'set', apply <datetime>.
                  Otherwise, ignore.

$ target/debug/clock                                 ③
2021-04-03T15:48:23.984946724+13:00

① This warning is eliminated in clock v0.1.2.

② Arguments to the right of -- are sent to the resulting executable.

③ Executes the target/debug/clock executable directly

Creating the project step by step takes slightly more work. As clock v0.1.1 is a project managed by cargo, it follows the standard structure:

clock
├── Cargo.toml      ①
└── src
    └── main.rs     ②

① See listing 9.6.

② See listing 9.7.

To create it manually, follow these steps:

1. From the command-line, execute these commands:

   $ cargo new clock
   $ cd clock
   $ cargo install cargo-edit
   $ cargo add clap@2
   $ cargo add chrono@0.4

2. Compare the contents of your project’s Cargo.toml file with listing 9.6. With the exception of the authors field, these should match.

3. Replace the contents of src/main.rs with listing 9.7.

The next listing is the project’s Cargo.toml file. You’ll find it at ch9/ch9-clock1/Cargo.toml. Following that is the project’s src/main.rs file, listing 9.7. Its source is in ch9/ch9-clock1/src/main.rs.

Listing 9.6 Crate configuration for clock v0.1.1

[package]
name = "clock"
version = "0.1.1"
authors = ["Tim McNamara <author@rustinaction.com>"]
edition = "2018"

[dependencies]
chrono = "0.4"
clap = "2"

Listing 9.7 Producing formatted dates from the command line, clock v0.1.1

 1 use chrono::DateTime;
 2 use chrono::Local;
 3 use clap::{App, Arg};
 4
 5 struct Clock;
 6
 7 impl Clock {
 8   fn get() -> DateTime<Local> {
 9     Local::now()
10   }
11
12   fn set() -> ! {
13     unimplemented!()
14   }
15 }
16
17 fn main() {
18   let app = App::new("clock")
19     .version("0.1")
20     .about("Gets and (aspirationally) sets the time.")
21     .arg(
22       Arg::with_name("action")
23         .takes_value(true)
24         .possible_values(&["get", "set"])
25         .default_value("get"),
26     )
27     .arg(
28       Arg::with_name("std")
29         .short("s")
30         .long("use-standard")
31         .takes_value(true)
32         .possible_values(&[
33           "rfc2822",
34           "rfc3339",
35           "timestamp",
36         ])
37         .default_value("rfc3339"),
38     )
39     .arg(Arg::with_name("datetime").help(
40       "When <action> is 'set', apply <datetime>. \
41        Otherwise, ignore.",
42     ));
43
44   let args = app.get_matches();
45
46   let action = args.value_of("action").unwrap();    ①
47   let std = args.value_of("std").unwrap();          ①
48
49   if action == "set" {
50     unimplemented!()                                ②
51   }
52
53   let now = Clock::get();
54   match std {
55     "timestamp" => println!("{}", now.timestamp()),
56     "rfc2822" => println!("{}", now.to_rfc2822()),
57     "rfc3339" => println!("{}", now.to_rfc3339()),
58     _ => unreachable!(),
59   }
60 }

① Supplies a default value to each argument via default_value("get") and default_value("rfc3339"). It’s safe to call unwrap() on these two lines.

② Aborts early as we’re not ready to set the time yet

9.7 clock v0.1.2: Setting the time

Setting the time is complicated because each OS has its own mechanism for doing so. This requires that we use OS-specific conditional compilation to create a cross-portable tool.

9.7.1 Common behavior

Listing 9.11 provides two implementations of setting the time. These both follow a common pattern:

1. Parsing a command-line argument to create a DateTime<FixedOffset> value.

   The FixedOffset time zone is provided by chrono as a proxy for “whichever time zone is provided by the user.” chrono doesn’t know at compile time which time zone will be selected.

2. Converting the DateTime<FixedOffset> to a DateTime<Local> to enable time zone comparisons.

3. Instantiating an OS-specific struct that’s used as an argument for the necessary system call (system calls are function calls provided by the OS).

4. Setting the system’s time within an unsafe block. This block is required because responsibility is delegated to the OS.

5. Printing the updated time.

Warning This code uses functions to teleport the system’s clock to a different time. This jumpiness can cause system instability.

Some applications expect monotonically increasing time. A smarter (but more complex) approach is to adjust the length of a second for n seconds until the desired time is reached. Functionality is implemented within the Clock struct that was introduced in section 9.6.1.

9.7.2 Setting the time for operating systems that use libc

POSIX-compliant operating systems can have their time set via a call to settimeofday(), which is provided by libc. libc is the C Standard Library and has lots of historic connections with UNIX operating systems. The C language, in fact, was developed to write UNIX. Even today, interacting with a UNIX derivative involves using the tools provided by the C language. There are two mental hurdles required for Rust programmers to understanding the code in listing 9.11, which we’ll address in the following sections:

• The arcane types provided by libc

• The unfamiliarity of providing arguments as pointers

libc type naming conventions

libc uses conventions for naming types that differ from Rust’s. libc does not use PascalCase to denote a type, preferring to use lowercase. That is, where Rust would use TimeVal, libc uses timeval. The convention changes slightly when dealing with type aliases. Within libc, type aliases append an underscore followed by the letter t (_t) to the type’s name. The next two snippets show some libc imports and the equivalent Rust code for building those types.

On line 64 of listing 9.8, you will encounter this line:

libc::{timeval, time_t, suseconds_t};

It represents two type aliases and a struct definition. In Rust syntax, these are defined like this:

#![allow(non_camel_case_types)]

type time_t = i64;
type suseconds_t = i64;

pub struct timeval {
    pub tv_sec: time_t,
    pub tv_usec: suseconds_t,
}

time_t represents the seconds that have elapsed since the epoch. suseconds_t represents the fractional component of the current second.

The types and functions relating to timekeeping involve a lot of indirection. The code is intended to be easy to implement, which means providing local implementors (hardware designers) the opportunity to change aspects as their platforms require. The way this is done is to use type aliases everywhere, rather than sticking to a defined integer type.

Non-Windows clock code

The libc library provides a handy function, settimeofday, which we’ll use in listing 9.8. The project’s Cargo.toml file requires two extra lines to bring libc bindings into the crate for non-Windows platforms:

[target.'cfg(not(windows))'.dependencies]       ①
libc = "0.2"

① You can add these two lines to the end of the file.

The following listing, an extract from listing 9.11, shows how to set the time with C’s standard library, libc. In the listing, we use Linux and BSD operating systems or other similar ones.

Listing 9.8 Setting the time in a libc environment

62 #[cfg(not(windows))]
63 fn set<Tz: TimeZone>(t: DateTime<Tz>) -> () {          ①
64   use libc::{timeval, time_t, suseconds_t};            ②
65   use libc::{settimeofday, timezone }                  ②
66
67   let t = t.with_timezone(&Local);
68   let mut u: timeval = unsafe { zeroed() };
69
70   u.tv_sec = t.timestamp() as time_t;
71   u.tv_usec =
72     t.timestamp_subsec_micros() as suseconds_t;
73
74   unsafe {
75     let mock_tz: *const timezone = std::ptr::null();   ①
76     settimeofday(&u as *const timeval, mock_tz);
77   }
78 }

① t is sourced from the command line and has already been parsed.

② The timezone parameter of settimeofday() appears to be some sort of historic accident. Non-null values generate an error.

Makes OS-specific imports within the function to avoid polluting the global scope. libc::settimeofday is a function that modifies the system clock, and suseconds_t, time_t, timeval, and timezone are all types used to interact with it.

This code cheekily, and probably perilously, avoids checking whether the settimeofday function is successful. It’s quite possible that it isn’t. That will be remedied in the next iteration of the clock application.

9.7.3 Setting the time on MS Windows

The code for MS Windows is similar to its libc peers. It is somewhat wordier, as the struct that sets the time has more fields than the second and subsecond part. The rough equivalent of the libc library is called kernel32.dll, which is accessible after including the winapi crate.

Windows API integer types

Windows provides its own take on what to call integral types. This code only makes use of the WORD type, but it can be useful to remember the two other common types that have emerged since computers have used 16-bit CPUs. The following table shows how integer types from kernel32.dll correspond to Rust types.

Representing time in Windows

Windows provides multiple time types. Within our clock application, however, we’re mostly interested in SYSTEMTIME. Another type that is provided is FILETIME. The following table describes these types to avoid confusion.

Windows clock code

As the SYSTEMTIME struct contains many fields, generating one takes a little bit longer. The following listing shows this construct.

Listing 9.9 Setting the time using the Windows kernel32.dll API

19   #[cfg(windows)]
20   fn set<Tz: TimeZone>(t: DateTime<Tz>) -> () {
21     use chrono::Weekday;
22     use kernel32::SetSystemTime;
23     use winapi::{SYSTEMTIME, WORD};
24
25     let t = t.with_timezone(&Local);
26
27     let mut systime: SYSTEMTIME = unsafe { zeroed() };
28
29     let dow = match t.weekday() {               ①
30       Weekday::Mon => 1,                        ①
31       Weekday::Tue => 2,                        ①
32       Weekday::Wed => 3,                        ①
33       Weekday::Thu => 4,                        ①
34       Weekday::Fri => 5,                        ①
35       Weekday::Sat => 6,                        ①
36       Weekday::Sun => 0,                        ①
37     };
38
39     let mut ns = t.nanosecond();                ②
40     let mut leap = 0;                           ②
41     let is_leap_second = ns > 1_000_000_000;    ②
42                                                 ②
43     if is_leap_second {                         ②
44       ns -= 1_000_000_000;                      ②
45       leap += 1;                                ②
46     }                                           ②
47
48     systime.wYear = t.year() as WORD;
49     systime.wMonth = t.month() as WORD;
50     systime.wDayOfWeek = dow as WORD;
51     systime.wDay = t.day() as WORD;
52     systime.wHour = t.hour() as WORD;
53     systime.wMinute = t.minute() as WORD;
54     systime.wSecond = (leap + t.second()) as WORD;
55     systime.wMilliseconds = (ns / 1_000_000) as WORD;
56
57     let systime_ptr = &systime as *const SYSTEMTIME;
58
59     unsafe {                                    ③
60       SetSystemTime(systime_ptr);               ③
61     }                                           ③
62   }

① The chrono::Datelike trait provides the weekday() method. Microsoft’s developer documentation provides the conversion table.

② As an implementation detail, chrono represents leap seconds by adding an extra second within the nanoseconds field. To convert the nanoseconds to milliseconds as required by Windows, we need to account for this.

③ From the perspective of the Rust compiler, giving something else direct access to memory is unsafe. Rust cannot guarantee that the Windows kernel will be well-behaved.

9.7.4 clock v0.1.2: The full code listing

clock v0.1.2 follows the same project structure as v0.1.1, which is repeated here. To create platform-specific behavior, some adjustments are required to Cargo.toml.

clock
├── Cargo.toml      ①
└── src
    └── main.rs     ②

① See listing 9.10.

② See listing 9.11.

Listings 9.10 and 9.11 provide the full source code for the project. These are available for download from ch9/ch9-clock0/Cargo.toml and ch9/ch9-clock0/src/main.rs, respectively.

Listing 9.10 Crate configuration for listing 9.11

[package]
name = "clock"
version = "0.1.2"
authors = ["Tim McNamara <author@rustinaction.com>"]
edition = "2018"

[dependencies]
chrono = "0.4"
clap = "2"

[target.'cfg(windows)'.dependencies]
winapi = "0.2"
kernel32-sys = "0.2"

[target.'cfg(not(windows))'.dependencies]
libc = "0.2"

Listing 9.11 Cross-portable code for setting the system time

  1 #[cfg(windows)]
  2 use kernel32;
  3 #[cfg(not(windows))]
  4 use libc;
  5 #[cfg(windows)]
  6 use winapi;
  7
  8 use chrono::{DateTime, Local, TimeZone};
  9 use clap::{App, Arg};
 10 use std::mem::zeroed;
 11
 12 struct Clock;
 13
 14 impl Clock {
 15   fn get() -> DateTime<Local> {
 16     Local::now()
 17   }
 18
 19   #[cfg(windows)]
 20   fn set<Tz: TimeZone>(t: DateTime<Tz>) -> () {
 21     use chrono::Weekday;
 22     use kernel32::SetSystemTime;
 23     use winapi::{SYSTEMTIME, WORD};
 24
 25     let t = t.with_timezone(&Local);
 26
 27     let mut systime: SYSTEMTIME = unsafe { zeroed() };
 28
 29     let dow = match t.weekday() {
 30       Weekday::Mon => 1,
 31       Weekday::Tue => 2,
 32       Weekday::Wed => 3,
 33       Weekday::Thu => 4,
 34       Weekday::Fri => 5,
 35       Weekday::Sat => 6,
 36       Weekday::Sun => 0,
 37     };
 38
 39     let mut ns = t.nanosecond();
 40     let is_leap_second = ns > 1_000_000_000;
 41
 42     if is_leap_second {
 43       ns -= 1_000_000_000;
 44     }
 45
 46     systime.wYear = t.year() as WORD;
 47     systime.wMonth = t.month() as WORD;
 48     systime.wDayOfWeek = dow as WORD;
 49     systime.wDay = t.day() as WORD;
 50     systime.wHour = t.hour() as WORD;
 51     systime.wMinute = t.minute() as WORD;
 52     systime.wSecond = t.second() as WORD;
 53     systime.wMilliseconds = (ns / 1_000_000) as WORD;
 54
 55     let systime_ptr = &systime as *const SYSTEMTIME;
 56
 57     unsafe {
 58       SetSystemTime(systime_ptr);
 59     }
 60   }
 61
 62   #[cfg(not(windows))]
 63   fn set<Tz: TimeZone>(t: DateTime<Tz>) -> () {
 64       use libc::{timeval, time_t, suseconds_t};
 65   use libc::{settimeofday, timezone};
 66
 67     let t = t.with_timezone(&Local);
 68     let mut u: timeval = unsafe { zeroed() };
 69
 70     u.tv_sec = t.timestamp() as time_t;
 71     u.tv_usec =
 72       t.timestamp_subsec_micros() as suseconds_t;
 73
 74     unsafe {
 75       let mock_tz: *const timezone = std::ptr::null();
 76       settimeofday(&u as *const timeval, mock_tz);
 77     }
 78   }
 79 }
 80
 81 fn main() {
 82   let app = App::new("clock")
 83     .version("0.1.2")
 84     .about("Gets and (aspirationally) sets the time.")
 85     .after_help(
 86       "Note: UNIX timestamps are parsed as whole \
 87        seconds since 1st January 1970 0:00:00 UTC. \
 88        For more accuracy, use another format.",
 89     )
 90     .arg(
 91       Arg::with_name("action")
 92         .takes_value(true)
 93         .possible_values(&["get", "set"])
 94         .default_value("get"),
 95     )
 96     .arg(
 97       Arg::with_name("std")
 98         .short("s")
 99         .long("use-standard")
100         .takes_value(true)
101         .possible_values(&[
102           "rfc2822",
103           "rfc3339",
104           "timestamp",
105         ])
106         .default_value("rfc3339"),
107     )
108     .arg(Arg::with_name("datetime").help(
109       "When <action> is 'set', apply <datetime>. \
110        Otherwise, ignore.",
111     ));
112
113   let args = app.get_matches();
114
115   let action = args.value_of("action").unwrap();
116   let std = args.value_of("std").unwrap();
117
118   if action == "set" {
119     let t_ = args.value_of("datetime").unwrap();
120
121     let parser = match std {
122       "rfc2822" => DateTime::parse_from_rfc2822,
123       "rfc3339" => DateTime::parse_from_rfc3339,
124       _ => unimplemented!(),
125     };
126
127     let err_msg = format!(
128       "Unable to parse {} according to {}",
129       t_, std
130     );
131     let t = parser(t_).expect(&err_msg);
132
133     Clock::set(t)
134   }
135
136   let now = Clock::get();
137
138   match std {
139     "timestamp" => println!("{}", now.timestamp()),
140     "rfc2822" => println!("{}", now.to_rfc2822()),
141     "rfc3339" => println!("{}", now.to_rfc3339()),
142     _ => unreachable!(),
143   }
144 }

9.8 Improving error handling

Those readers who have dealt with operating systems before will probably be dismayed at some of the code in section 9.7. Among other things, it doesn’t check to see whether the calls to settimeofday() and SetSystemTime() were actually successful.

There are multiple reasons why setting the time might fail. The most obvious one is that the user who is attempting to set the time lacks permission to do so. The robust approach is to have Clock::set(t) return Result. As that requires modifying two functions that we have already spent some time explaining in depth, let’s introduce a workaround that instead makes use of the operating system’s error reporting:

fn main() {
  // ...
  if action == "set" {
    // ...

    Clock::set(t);

    let maybe_error =
      std::io::Error::last_os_error();    ①
    let os_error_code =
      &maybe_error.raw_os_error();        ①

    match os_error_code {
      Some(0) => (),                      ②
      Some(_) => eprintln!("Unable to set the time: {:?}", maybe_error),
      None => (),
    }
  }
}

① Deconstructs maybe_error, a Rust type, to convert it into a raw i32 value that’s easy to match

② Matching on a raw integer saves importing an enum, but sacrifices type safety. Production-ready code shouldn’t cheat in this way.

After calls to Clock::set(t), Rust happily talks to the OS via std::io::Error::last _os_error(). Rust checks to see if an error code has been generated.

9.9 clock v0.1.3: Resolving differences between clocks with the Network Time Protocol (NTP)

Coming to a consensus about the correct time is known formally as clock synchronization. There are multiple international standards for synchronizing clocks. This section focuses on the most prominent one—the Network Time Protocol (NTP).

NTP has existed since the mid-1980s, and it has proven to be very stable. Its on-wire format has not changed in the first four revisions of the protocol, with backwards compatibility retained the entire time. NTP operates in two modes that can loosely be described as always on and request/response.

The always on mode allows multiple computers to work in a peer-to-peer fashion to converge on an agreed definition of now. It requires a software daemon or service to run constantly on each device, but it can achieve tight synchronization within local networks.

The request/response mode is much simpler. Local clients request the time via a single message and then parse the response, keeping track of the elapsed time. The client can then compare the original timestamp with the timestamp sent from the server, alter any delays caused by network latency, and make any necessary adjustments to move the local clock towards the server’s time.

Which server should your computer connect to? NTP works by establishing a hierarchy. At the center is a small network of atomic clocks. There are also national pools of servers.

NTP allows clients to request the time from computers that are closer to atomic clocks. But that only gets us part of the way. Let’s say that your computer asks 10 computers what they think the time is. Now we have 10 assertions about the time, and the network lag will differ for each source!

9.9.1 Sending NTP requests and interpreting responses

Let’s consider a client-server situation where your computer wants to correct its own time. For every computer that you check with—let’s call these time servers—there are two messages:

• The message from your computer to each time server is the request.

• The reply is known as the response.

These two messages generate four time points. Note that these occur in serial:

• T₁—The client’s timestamp for when the request was sent. Referred to as t1 in code.

• T₂—The time server’s timestamp for when the request was received. Referred to as t2 in code.

• T₃—The time server’s timestamp for when it sends its response. Referred to as t3 in code.

• T₄—The client’s timestamp for when the response was received. Referred to as t4 in code.

The names T₁–T₄ are designated by the RFC 2030 specification. Figure 9.2 shows the timestamps.

Figure 9.2 Timestamps that are defined within the NTP standard

To see what this means in code, spend a few moments looking through the following listing. Lines 2–12 deal with establishing a connection. Lines 14–21 produce T₁–T₄.

Listing 9.12 Defining a function that sends NTP messages

 1 fn ntp_roundtrip(
 2   host: &str,
 3   port: u16,
 4 ) -> Result<NTPResult, std::io::Error> {
 5   let destination = format!("{}:{}", host, port);
 6   let timeout = Duration::from_secs(1);
 7
 8   let request = NTPMessage::client();
 9   let mut response = NTPMessage::new();
10
11   let message = request.data;
12
13   let udp = UdpSocket::bind(LOCAL_ADDR)?;
14   udp.connect(&destination).expect("unable to connect");
15
16   let t1 = Utc::now();                     ①
17
18   udp.send(&message)?;                     ②
19   udp.set_read_timeout(Some(timeout))?;
20   udp.recv_from(&mut response.data)?;      ③
21
22   let t4 = Utc::now();
23
24   let t2: DateTime<Utc> =                  ④
25     response                               ④
26       .rx_time()                           ④
27       .unwrap()                            ④
28       .into();                             ④
29
30   let t3: DateTime<Utc> =                  ⑤
31     response                               ⑤
32       .tx_time()                           ⑤
33       .unwrap()                            ⑤
34       .into();                             ⑤
35
36   Ok(NTPResult {
37     t1: t1,
38     t2: t2,
39     t3: t3,
40     t4: t4,
41   })
42 }

① This code cheats slightly by not encoding t1 in the outbound message. In practice, however, this works perfectly well and requires fractionally less work.

② Sends a request payload (defined elsewhere) to the server

③ Blocks the application until data is ready to be received

④ rx_time() stands for received timestamp and is the time that the server received the client’s message.

⑤ tx_time() stands for transmitted timestamp and is the time that the server sent the reply.

T₁–T₄, encapsulated in listing 9.12 as NTPResult, are all that’s required to judge whether the local time matches the server’s time. The protocol contains more related to error handling, but that’s avoided here for simplicity. Otherwise, it’s a perfectly capable NTP client.

9.9.2 Adjusting the local time as a result of the server’s response

Given that our client has received at least one (and hopefully a few more) NTP responses, all that’s left to do is to calculate the “right” time. But wait, which time is right? All we have are relative timestamps. There is still no universal “truth” that we’ve been given access to.

Note For those readers who don’t enjoy Greek letters, feel free to skim or even skip the next few paragraphs.

The NTP documentation provides two equations to help resolve the situation. Our aim is to calculate two values. Table 9.2 shows the calculations.

• The time offset is what we’re ultimately interested in. It is denoted as θ (theta) by the official documentation. When θ is a positive number, our clock is fast. When it is negative, our clock is slow.

• The delay caused by network congestion, latency, and other noise. This is denoted as δ (delta). A large δ implies that the reading is less reliable. Our code uses this value to follow servers that respond quickly.

Table 9.2 How to calculate δ and θ in NTP

The mathematics can be confusing because there is always an innate desire to know what the time actually is. That’s impossible to know. All we have are assertions.

NTP is designed to operate multiple times per day, with participants nudging their clocks incrementally over time. Given sufficient adjustments, θ tends to 0 while δ remains relatively stable.

The standard is quite prescriptive about the formula to carry out the adjustments. For example, the reference implementation of NTP includes some useful filtering to limit the effect of bad actors and other spurious results. But we’re going to cheat. We’ll just take a mean of the differences, weighted by 1 / θ2. This aggressively penalizes slow servers. To minimize the likelihood of any negative outcomes:

• We’ll check the time with known “good” actors. In particular, we’ll use time servers hosted by major OS vendors and other reliable sources to minimize the chances of someone sending us a questionable result.

• No single result will affect the result too much. We’ll provide a cap of 200 ms on any adjustments we make to the local time.

The following listing, an extract from listing 9.15, shows this process for multiple time servers.

Listing 9.13 Adjusting the time according to the responses

175 fn check_time() -> Result<f64, std::io::Error> {
176   const NTP_PORT: u16 = 123;
177
178   let servers = [
179     "time.nist.gov",
180     "time.apple.com",
181     "time.euro.apple.com",
182     "time.google.com",                              ①
183     "time2.google.com",                             ①
184     / /"time.windows.com",                          ②
185   ];
186
187   let mut times = Vec::with_capacity(servers.len());
188
189   for &server in servers.iter() {
190     print!("{} =>", server);
191
192     let calc = ntp_roundtrip(&server, NTP_PORT);
193
194     match calc {
195       Ok(time) => {
196         println!(" {}ms away from local system time", time.offset());
197         times.push(time);
198       }
199       Err(_) => {
200         println!(" ? [response took too long]")
201       }
202     };
203   }
204
205   let mut offsets = Vec::with_capacity(servers.len());
206   let mut offset_weights = Vec::with_capacity(servers.len());
207
208   for time in &times {
209     let offset = time.offset() as f64;
210     let delay = time.delay() as f64;
211
212     let weight = 1_000_000.0 / (delay * delay);    ③
213     if weight.is_finite() {
214       offsets.push(offset);
215       offset_weights.push(weight);
216     }
217   }
218
219   let avg_offset = weighted_mean(&offsets, &offset_weights);
220
221   Ok(avg_offset)
222 }

① Google’s time servers implement leap seconds by expanding the length of a second rather than adding an extra second. Thus, for one day approximately every 18 months, this server reports a different time than the others.

② At the time of writing, Microsoft’s time server provides a time that’s 15 s ahead of its peers.

③ Penalizes slow servers by substantially decreasing their relative weights

9.9.3 Converting between time representations that use different precisions and epochs

chrono represents the fractional part of a second, down to a nanosecond precision, whereas NTP can represent times that differ by approximately 250 picoseconds. That’s roughly four times more precise! The different internal representations used imply that some accuracy is likely to be lost during conversions.

The From trait is the mechanism for telling Rust that two types can be converted. From provides the from() method, which is encountered early on in one’s Rust career (in examples such as String::from("Hello, world!")).

The next listing, a combination of three extracts from listing 9.15, provides implementations of the std::convert::From trait. This code enables the .into() calls on lines 28 and 34 of listing 9.13.

Listing 9.14 Converting between chrono::DateTime and NTP timestamps

19 const NTP_TO_UNIX_SECONDS: i64 = 2_208_988_800;        ①
22 #[derive(Default,Debug,Copy,Clone)]
23 struct NTPTimestamp {                                  ②
24   seconds: u32,                                        ②
25   fraction: u32,                                       ②
26 }
                                                  ②
52  impl From<NTPTimestamp> for DateTime<Utc> {
53    fn from(ntp: NTPTimestamp) -> Self {
54     let secs = ntp.seconds as i64 - NTP_TO_UNIX_SECONDS;
55     let mut nanos = ntp.fraction as f64;
56     nanos *= 1e9;                                      ③
57     nanos /= 2_f64.powi(32);                           ③
58
59     Utc.timestamp(secs, nanos as u32)
60   }
61 }
62
63 impl From<DateTime<Utc>> for NTPTimestamp {
64   fn from(utc: DateTime<Utc>) -> Self {
65     let secs = utc.timestamp() + NTP_TO_UNIX_SECONDS;
66     let mut fraction = utc.nanosecond() as f64;
67     fraction *= 2_f64.powi(32);                        ③
68     fraction /= 1e9;                                   ③
69
70     NTPTimestamp {
71       seconds: secs as u32,
72       fraction: fraction as u32,
73     }
74   }
75 }

① Number of seconds between 1 Jan 1900 (the NTP epoch) and 1 Jan 1970 (the UNIX epoch)

② Our internal type represents an NTP timestamp.

③ You can implement these conversions using bit-shift operations, but at the expense of even less readability.

From has a reciprocal peer, Into. Implementing From allows Rust to automatically generate an Into implementation on its own, except in advanced cases. In those cases, it’s likely that developers already possess the knowledge required to implement Into manually and so probably don’t need assistance here.

9.9.4 clock v0.1.3: The full code listing

The complete code listing for our clock application is presented in listing 9.15. Taken in its full glory, the whole of the clock application can look quite large and imposing. Hopefully, there is no new Rust syntax to digest within the listing. The source for this listing is in ch9/ch9-clock3/src/main.rs.

Listing 9.15 Full listing for the command-line NTP client, clock

  1 #[cfg(windows)]
  2 use kernel32;
  3 #[cfg(not(windows))]
  4 use libc;
  5 #[cfg(windows)]
  6 use winapi;
  7
  8 use byteorder::{BigEndian, ReadBytesExt};
  9 use chrono::{
 10   DateTime, Duration as ChronoDuration, TimeZone, Timelike,
 11 };
 12 use chrono::{Local, Utc};
 13 use clap::{App, Arg};
 14 use std::mem::zeroed;
 15 use std::net::UdpSocket;
 16 use std::time::Duration;
 17
 18 const NTP_MESSAGE_LENGTH: usize = 48;                 ①
 19 const NTP_TO_UNIX_SECONDS: i64 = 2_208_988_800;
 20 const LOCAL_ADDR: &'static str = "0.0.0.0:12300";     ②
 21
 22 #[derive(Default, Debug, Copy, Clone)]
 23 struct NTPTimestamp {
 24   seconds: u32,
 25   fraction: u32,
 26 }
 27
 28 struct NTPMessage {
 29   data: [u8; NTP_MESSAGE_LENGTH],
 30 }
 31
 32 #[derive(Debug)]
 33 struct NTPResult {
 34   t1: DateTime<Utc>,
 35   t2: DateTime<Utc>,
 36   t3: DateTime<Utc>,
 37   t4: DateTime<Utc>,
 38 }
 39
 40 impl NTPResult {
 41   fn offset(&self) -> i64 {
 42     let duration = (self.t2 - self.t1) + (self.t4 - self.t3);
 43     duration.num_milliseconds() / 2
 44   }
 45
 46   fn delay(&self) -> i64 {
 47     let duration = (self.t4 - self.t1) - (self.t3 - self.t2);
 48     duration.num_milliseconds()
 49   }
 50 }
 51
 52 impl From<NTPTimestamp> for DateTime<Utc> {
 53   fn from(ntp: NTPTimestamp) -> Self {
 54     let secs = ntp.seconds as i64 - NTP_TO_UNIX_SECONDS;
 55     let mut nanos = ntp.fraction as f64;
 56     nanos *= 1e9;
 57     nanos /= 2_f64.powi(32);
 58
 59     Utc.timestamp(secs, nanos as u32)
 60   }
 61 }
 62
 63 impl From<DateTime<Utc>> for NTPTimestamp {
 64   fn from(utc: DateTime<Utc>) -> Self {
 65     let secs = utc.timestamp() + NTP_TO_UNIX_SECONDS;
 66     let mut fraction = utc.nanosecond() as f64;
 67     fraction *= 2_f64.powi(32);
 68     fraction /= 1e9;
 69
 70     NTPTimestamp {
 71       seconds: secs as u32,
 72       fraction: fraction as u32,
 73     }
 74   }
 75 }
 76
 77 impl NTPMessage {
 78   fn new() -> Self {
 79     NTPMessage {
 80       data: [0; NTP_MESSAGE_LENGTH],
 81     }
 82   }
 83
 84   fn client() -> Self {
 85     const VERSION: u8 = 0b00_011_000;              ③
 86     const MODE: u8    = 0b00_000_011;              ③
 87
 88     let mut msg = NTPMessage::new();
 89
 90     msg.data[0] |= VERSION;                        ④
 91     msg.data[0] |= MODE;                           ④
 92     msg                                            ⑤
 93   }
 94
 95   fn parse_timestamp(
 96     &self,
 97     i: usize,
 98   ) -> Result<NTPTimestamp, std::io::Error> {
 99     let mut reader = &self.data[i..i + 8];         ⑥
100     let seconds    = reader.read_u32::<BigEndian>()?;
101     let fraction   = reader.read_u32::<BigEndian>()?;
102
103     Ok(NTPTimestamp {
104       seconds:  seconds,
105       fraction: fraction,
106     })
107   }
108
109   fn rx_time(
110     &self
111   ) -> Result<NTPTimestamp, std::io::Error> {      ⑦
112     self.parse_timestamp(32)
113   }
114
115   fn tx_time(
116     &self
117   ) -> Result<NTPTimestamp, std::io::Error> {      ⑧
118     self.parse_timestamp(40)
119   }
120 }
121
122 fn weighted_mean(values: &[f64], weights: &[f64]) -> f64 {
123   let mut result = 0.0;
124   let mut sum_of_weights = 0.0;
125
126   for (v, w) in values.iter().zip(weights) {
127     result += v * w;
128     sum_of_weights += w;
129   }
130
131   result / sum_of_weights
132 }
133
134 fn ntp_roundtrip(
135   host: &str,
136   port: u16,
137 ) -> Result<NTPResult, std::io::Error> {
138   let destination = format!("{}:{}", host, port);
139   let timeout = Duration::from_secs(1);
140
141   let request = NTPMessage::client();
142   let mut response = NTPMessage::new();
143
144   let message = request.data;
145
146   let udp = UdpSocket::bind(LOCAL_ADDR)?;
147   udp.connect(&destination).expect("unable to connect");
148
149   let t1 = Utc::now();
150
151   udp.send(&message)?;
152   udp.set_read_timeout(Some(timeout))?;
153   udp.recv_from(&mut response.data)?;
154   let t4 = Utc::now();
155
156   let t2: DateTime<Utc> =
157     response
158       .rx_time()
159       .unwrap()
160       .into();
161   let t3: DateTime<Utc> =
162     response
163       .tx_time()
164       .unwrap()
165       .into();
166
167   Ok(NTPResult {
168     t1: t1,
169     t2: t2,
170     t3: t3,
171     t4: t4,
172   })
173 }
174
175 fn check_time() -> Result<f64, std::io::Error> {
176   const NTP_PORT: u16 = 123;
177
178   let servers = [
179     "time.nist.gov",
180     "time.apple.com",
181     "time.euro.apple.com",
182     "time.google.com",
183     "time2.google.com",
184     / /"time.windows.com",
185   ];
186
187   let mut times = Vec::with_capacity(servers.len());
188
189   for &server in servers.iter() {
190     print!("{} =>", server);
191
192     let calc = ntp_roundtrip(&server, NTP_PORT);
193
194     match calc {
195       Ok(time) => {
196         println!(" {}ms away from local system time", time.offset());
197         times.push(time);
198       }
199       Err(_) => {
200         println!(" ? [response took too long]")
201       }
202     };
203   }
204
205   let mut offsets = Vec::with_capacity(servers.len());
206   let mut offset_weights = Vec::with_capacity(servers.len());
207
208   for time in &times {
209     let offset = time.offset() as f64;
210     let delay = time.delay() as f64;
211
212     let weight = 1_000_000.0 / (delay * delay);
213     if weight.is_finite() {
214       offsets.push(offset);
215       offset_weights.push(weight);
216     }
217   }
218
219   let avg_offset = weighted_mean(&offsets, &offset_weights);
220
221   Ok(avg_offset)
222 }
223
224 struct Clock;
225
226 impl Clock {
227   fn get() -> DateTime<Local> {
228     Local::now()
229   }
230
231   #[cfg(windows)]
232   fn set<Tz: TimeZone>(t: DateTime<Tz>) -> () {
233     use chrono::Weekday;
234     use kernel32::SetSystemTime;
235     use winapi::{SYSTEMTIME, WORD};
236
237     let t = t.with_timezone(&Local);
238
239     let mut systime: SYSTEMTIME = unsafe { zeroed() };
240
241     let dow = match t.weekday() {
242       Weekday::Mon => 1,
243       Weekday::Tue => 2,
244       Weekday::Wed => 3,
245       Weekday::Thu => 4,
246       Weekday::Fri => 5,
247       Weekday::Sat => 6,
248       Weekday::Sun => 0,
249     };
250
251     let mut ns = t.nanosecond();
252     let is_leap_second = ns > 1_000_000_000;
253
254     if is_leap_second {
255       ns -= 1_000_000_000;
256     }
257
258     systime.wYear = t.year() as WORD;
259     systime.wMonth = t.month() as WORD;
260     systime.wDayOfWeek = dow as WORD;
261     systime.wDay = t.day() as WORD;
262     systime.wHour = t.hour() as WORD;
263     systime.wMinute = t.minute() as WORD;
264     systime.wSecond = t.second() as WORD;
265     systime.wMilliseconds = (ns / 1_000_000) as WORD;
266
267     let systime_ptr = &systime as *const SYSTEMTIME;
268     unsafe {
269       SetSystemTime(systime_ptr);
270     }
271   }
272
273   #[cfg(not(windows))]
274   fn set<Tz: TimeZone>(t: DateTime<Tz>) -> () {
275     use libc::settimeofday;
276     use libc::{suseconds_t, time_t, timeval, timezone};
277
278     let t = t.with_timezone(&Local);
279     let mut u: timeval = unsafe { zeroed() };
280
281     u.tv_sec = t.timestamp() as time_t;
282     u.tv_usec = t.timestamp_subsec_micros() as suseconds_t;
283
284     unsafe {
285       let mock_tz: *const timezone = std::ptr::null();
286       settimeofday(&u as *const timeval, mock_tz);
287     }
288   }
289 }
290
291 fn main() {
292   let app = App::new("clock")
293     .version("0.1.3")
294     .about("Gets and sets the time.")
295     .after_help(
296       "Note: UNIX timestamps are parsed as whole seconds since 1st \
297        January 1970 0:00:00 UTC. For more accuracy, use another \
298        format.",
299     )
300     .arg(
301       Arg::with_name("action")
302         .takes_value(true)
303         .possible_values(&["get", "set", "check-ntp"])
304         .default_value("get"),
305     )
306     .arg(
307       Arg::with_name("std")
308         .short("s")
309         .long("use-standard")
310         .takes_value(true)
311         .possible_values(&["rfc2822", "rfc3339", "timestamp"])
312         .default_value("rfc3339"),
313     )
314     .arg(Arg::with_name("datetime").help(
315       "When <action> is 'set', apply <datetime>. Otherwise, ignore.",
316     ));
317
318   let args = app.get_matches();
319
320   let action = args.value_of("action").unwrap();
321   let std = args.value_of("std").unwrap();
322
323   if action == "set" {
324     let t_ = args.value_of("datetime").unwrap();
325
326     let parser = match std {
327       "rfc2822" => DateTime::parse_from_rfc2822,
328       "rfc3339" => DateTime::parse_from_rfc3339,
329       _ => unimplemented!(),
330     };
331
332     let err_msg =
333       format!("Unable to parse {} according to {}", t_, std);
334     let t = parser(t_).expect(&err_msg);
335
336     Clock::set(t);
337
338   } else if action == "check-ntp" {
339     let offset = check_time().unwrap() as isize;
340
341     let adjust_ms_ = offset.signum() * offset.abs().min(200) / 5;
342     let adjust_ms = ChronoDuration::milliseconds(adjust_ms_ as i64);
343
344     let now: DateTime<Utc> = Utc::now() + adjust_ms;
345
346     Clock::set(now);
347   }
348
349   let maybe_error =
350     std::io::Error::last_os_error();
351   let os_error_code =
352     &maybe_error.raw_os_error();
353
354   match os_error_code {
355     Some(0) => (),
356     Some(_) => eprintln!("Unable to set the time: {:?}", maybe_error),
357     None => (),
358   }
359
360   let now = Clock::get();
361
362   match std {
363     "timestamp" => println!("{}", now.timestamp()),
364     "rfc2822" => println!("{}", now.to_rfc2822()),
365     "rfc3339" => println!("{}", now.to_rfc3339()),
366     _ => unreachable!(),
367   }
368 }

① 12 * 4 bytes (the width of 12, 32-bit integers)

② 12300 is the default port for NTP.

③ Underscores delimit the NTP fields: leap indicator (2 bits), version (3 bits), and mode (3 bits).

④ The first byte of every NTP message contains three fields, but we only need to set two of these.

⑤ msg.data[0] is now equal to 0001_1011 (27 in decimal).

⑥ Takes a slice to the first byte

⑦ RX stands for receive.

⑧ TX stands for transmit.

Summary

• Keeping track of elapsed time is difficult. Digital clocks ultimately rely on fuzzy signals from analog systems.

• Representing time is difficult. Libraries and standards disagree about how much precision is required and when to start.

• Establishing truth in a distributed system is difficult. Although we continually deceive ourselves otherwise, there is no single arbiter of what time it is. The best we can hope for is that all of the computers in our network are reasonably close to each other.

• A struct with no fields is known as a zero-sized type or ZST. It does not occupy any memory in the resulting application and is purely a compile-time construct.

• Creating cross-portable applications is possible with Rust. Adding platform-specific implementations of functions requires the precise use of the cfg annotation, but it can be done.

• When interfacing with external libraries, such as the API provided by the operating system (OS), a type conversion step is almost always required. Rust’s type system does not extend to libraries that it did not create!

• System calls are used to make function calls to the OS. This invokes a complex interaction between the OS, the CPU, and the application.

• The Windows API typically uses verbose PascalCase identifiers, whereas operating systems from the POSIX tradition typically use terse lowercase identifiers.

• Be precise when making assumptions about the meaning of terms such as epoch and time zone. There is often hidden context lurking beneath the surface.

• Time can go backwards. Never write an application that relies on monotonically increasing time without ensuring that it requests a monotonically increasing clock from the OS.

^1.Dynamic adjustments to a CPU’s clock speed do occur in many processors to conserve power, but these happen infrequently enough from the point of view of the clock as to be insignificant.

^2.For example, Intel-based processors support the RDTSC instruction, which stands for Read Time Stamp Counter.

^3.chronos has relatively few quirks, but one of which is sneaking leap seconds into the nanoseconds field.
